LVM（逻辑卷管理器）
逻辑卷管理器是Linux系统用于对硬盘分区进行管理的一种机制，理论性较强，其创建初衷是为了解决硬盘设备在创建分区后不易修改分区大小的缺陷。尽管对传统的硬盘分区进行强制扩容或缩容从理论上来讲是可行的，但是却可能造成数据的丢失。而LVM技术是在硬盘分区和文件系统之间添加了一个逻辑层，它提供了一个抽象的卷组，可以把多块硬盘进行卷组合并。这样一来，用户不必关心物理硬盘设备的底层架构和布局，就可以实现对硬盘分区的动态调整。

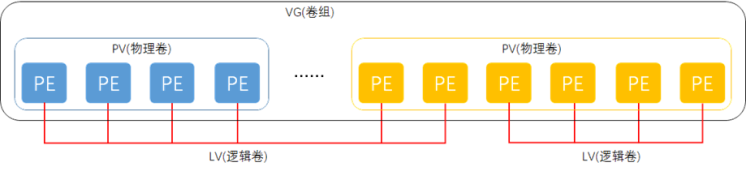

物理卷处于LVM中的最底层，可以将其理解为物理硬盘、硬盘分区或者RAID磁盘阵列，这都可以。卷组建立在物理卷之上，一个卷组可以包含多个物理卷，而且在卷组创建之后也可以继续向其中添加新的物理卷。逻辑卷是用卷组中空闲的资源建立的，并且逻辑卷在建立后可以动态地扩展或缩小空间。这就是LVM的核心理念。
PE最小存储单元，VG通过PV组合好PE，成一个整的；然后LV从VG分出来可供挂载使用
部署逻辑卷
常用的LVM部署命令
| 功能/命令 | 物理卷管理 | 卷组管理 | 逻辑卷管理 |
|---|---|---|---|
| 扫描 | pvscan | vgscan | lvscan |
| 建立 | pvcreate | vgcreate | lvcreate |
| 显示 | pvdisplay | vgdisplay | lvdisplay |
| 删除 | pvremove | vgremove | lvremove |
| 扩展 | vgextend | lvextend | |
| 缩小 | vgreduce | lvreduce |
为了避免多个实验之间相互发生冲突，请大家自行将虚拟机还原到初始状态，并在虚拟机中添加两块新硬盘设备，然后开机
第1步：让新添加的两块硬盘设备支持LVM技术
[root@localhost ~]# pvcreate /dev/nvme0n2 /dev/nvme0n3
Physical volume "/dev/nvme0n2" successfully created.
Physical volume "/dev/nvme0n3" successfully created.
#有时候创建不成功，有残留数据需要重新做分区表
#[root@localhost ~]#parted /dev/sd[b-c] mklabel msdos
第2步：把两块硬盘设备加入到storage卷组中，然后查看卷组的状态
[root@localhost ~]# vgcreate storage /dev/nvme0n2 /dev/nvme0n3
Volume group "storage" successfully created
[root@localhost ~]# vgdisplay storage
--- Volume group ---
VG Name storage
System ID
Format lvm2
Metadata Areas 2
Metadata Sequence No 1
VG Access read/write
VG Status resizable
MAX LV 0
Cur LV 0
Open LV 0
Max PV 0
Cur PV 2
Act PV 2
VG Size 9.99 GiB
PE Size 4.00 MiB
Total PE 2558
Alloc PE / Size 0 / 0
Free PE / Size 2558 / 9.99 GiB
VG UUID fhR9kn-q5mT-CxO1-Skst-c5mN-X1nN-TbQpU6
第3步：切割出一个约为150MB的逻辑卷设备。
这里需要注意切割单位的问题。在对逻辑卷进行切割时有两种计量单位。
第一种是以容量为单位，所使用的参数为-L。例如，使用-L 150M生成一个大小为150MB的逻辑卷。
另外一种是以基本单元的个数为单位，所使用的参数为-l。每个基本单元的大小默认为4MB。例如，使用-l 37可以生成一个大小为37×4MB=148MB的逻辑卷。
# [root@localhost ~]# lvcreate -n vo -l 37 -I 8M storage
[root@localhost ~]# lvcreate -n vo -l 37 storage
Logical volume "vo" created.
# 每个PE占4M，37*4=148M，远少于/dev/nvme0n2的5G，不会占用到第二个PV（/dev/nvme0n3），所以lsblk只看到占用了/dev/nvme0n2
[root@localhost ~]# lsblk
NAME MAJ:MIN RM SIZE RO TYPE MOUNTPOINTS
sr0 11:0 1 1.7G 0 rom
nvme0n1 259:0 0 20G 0 disk
├─nvme0n1p1 259:1 0 1G 0 part /boot
└─nvme0n1p2 259:2 0 19G 0 part
├─rl-root 253:0 0 17G 0 lvm /
└─rl-swap 253:1 0 2G 0 lvm [SWAP]
nvme0n2 259:3 0 5G 0 disk
└─storage-vo 253:2 0 148M 0 lvm
nvme0n3 259:4 0 5G 0 disk
nvme0n4 259:5 0 5G 0 disk
nvme0n5 259:6 0 5G 0 disk
nvme0n6 259:7 0 5G 0 disk
[root@localhost ~]# lvdisplay
--- Logical volume ---
LV Path /dev/storage/vo
LV Name vo
VG Name storage
LV UUID X83QDm-cgYS-Vlsj-FHqq-pJWh-bWnY-NhoozO
LV Write Access read/write
LV Creation host, time localhost.localdomain, 2024-11-16 17:35:36 +0800
LV Status available
# open 0
LV Size 148.00 MiB
Current LE 37
Segments 1
Allocation inherit
Read ahead sectors auto
- currently set to 8192
Block device 253:2
--- Logical volume ---
LV Path /dev/rl/swap
LV Name swap
VG Name rl
LV UUID mStLV7-xYcw-4GHG-vdEC-igob-LNmI-xWVQRF
LV Write Access read/write
LV Creation host, time localhost.localdomain, 2024-11-09 10:51:12 +0800
LV Status available
# open 2
LV Size 2.00 GiB
Current LE 512
Segments 1
Allocation inherit
Read ahead sectors auto
- currently set to 8192
Block device 253:1
--- Logical volume ---
LV Path /dev/rl/root
LV Name root
VG Name rl
LV UUID yQ6wgx-mgEh-ACiF-Au17-X7Qs-PzQx-0eiqg3
LV Write Access read/write
LV Creation host, time localhost.localdomain, 2024-11-09 10:51:12 +0800
LV Status available
# open 1
LV Size <17.00 GiB
Current LE 4351
Segments 1
Allocation inherit
Read ahead sectors auto
- currently set to 8192
Block device 253:0
第4步：把生成好的逻辑卷进行格式化，然后挂载使用。
[root@localhost ~]# mkfs.ext4 /dev/storage/vo
mke2fs 1.46.5 (30-Dec-2021)
Creating filesystem with 151552 1k blocks and 37848 inodes
Filesystem UUID: 11f83627-21f1-42fb-a19b-6ccfdc62453d
Superblock backups stored on blocks:
8193, 24577, 40961, 57345, 73729
Allocating group tables: done
Writing inode tables: done
Creating journal (4096 blocks): done
Writing superblocks and filesystem accounting information: done
[root@localhost ~]# mkdir /mnt/vo
[root@localhost ~]# mount /dev/storage/vo /mnt/vo
[root@localhost ~]# df -h
Filesystem Size Used Avail Use% Mounted on
devtmpfs 4.0M 0 4.0M 0% /dev
tmpfs 872M 0 872M 0% /dev/shm
tmpfs 349M 5.2M 344M 2% /run
/dev/mapper/rl-root 17G 1.7G 16G 10% /
/dev/nvme0n1p1 960M 261M 700M 28% /boot
tmpfs 175M 0 175M 0% /run/user/0
/dev/mapper/storage-vo 134M 14K 123M 1% /mnt/vo
[root@localhost ~]# lsblk
NAME MAJ:MIN RM SIZE RO TYPE MOUNTPOINTS
sr0 11:0 1 1.7G 0 rom
nvme0n1 259:0 0 20G 0 disk
├─nvme0n1p1 259:1 0 1G 0 part /boot
└─nvme0n1p2 259:2 0 19G 0 part
├─rl-root 253:0 0 17G 0 lvm /
└─rl-swap 253:1 0 2G 0 lvm [SWAP]
nvme0n2 259:3 0 5G 0 disk
└─storage-vo 253:2 0 148M 0 lvm /mnt/vo
nvme0n3 259:4 0 5G 0 disk
nvme0n4 259:5 0 5G 0 disk
nvme0n5 259:6 0 5G 0 disk
nvme0n6 259:7 0 5G 0 disk
[root@localhost ~]# echo "/dev/storage/vo /mnt/vo ext4 defaults 0 0" >> /etc/fstab
扩容逻辑卷
第1步：把上一个实验中的逻辑卷vo扩展至290MB
[root@localhost ~]# umount /mnt/vo
[root@localhost ~]# lvextend -L 290M /dev/storage/vo
Rounding size to boundary between physical extents: 292.00 MiB.
Size of logical volume storage/vo changed from 148.00 MiB (37 extents) to 292.00 MiB (73 extents).
Logical volume storage/vo successfully resized.
第2步：检查硬盘完整性，并重置硬盘容量，否则挂载了还是148M
[root@localhost ~]# e2fsck -f /dev/storage/vo
e2fsck 1.46.5 (30-Dec-2021)
Pass 1: Checking inodes, blocks, and sizes
Pass 2: Checking directory structure
Pass 3: Checking directory connectivity
Pass 4: Checking reference counts
Pass 5: Checking group summary information
/dev/storage/vo: 11/37848 files (0.0% non-contiguous), 15165/151552 blocks
[root@localhost ~]# resize2fs /dev/storage/vo
resize2fs 1.46.5 (30-Dec-2021)
Resizing the filesystem on /dev/storage/vo to 299008 (1k) blocks.
The filesystem on /dev/storage/vo is now 299008 (1k) blocks long.
第3步：重新挂载硬盘设备并查看挂载状态
[root@localhost ~]# systemctl daemon-reload
[root@localhost ~]# mount -a
[root@localhost ~]# df -h
Filesystem Size Used Avail Use% Mounted on
devtmpfs 4.0M 0 4.0M 0% /dev
tmpfs 872M 0 872M 0% /dev/shm
tmpfs 349M 5.2M 344M 2% /run
/dev/mapper/rl-root 17G 1.7G 16G 10% /
/dev/nvme0n1p1 960M 261M 700M 28% /boot
tmpfs 175M 0 175M 0% /run/user/0
/dev/mapper/storage-vo 268M 14K 250M 1% /mnt/vo
第4步，如果扩容到6G，则会占用到nvme0n3的pv
[root@localhost ~]# umount /mnt/vo
[root@localhost ~]# lvextend -L 6G /dev/storage/vo
Size of logical volume storage/vo changed from 292.00 MiB (73 extents) to 6.00 GiB (1536 extents).
Logical volume storage/vo successfully resized.
[root@localhost ~]# e2fsck -f /dev/storage/vo
e2fsck 1.46.5 (30-Dec-2021)
Pass 1: Checking inodes, blocks, and sizes
Pass 2: Checking directory structure
Pass 3: Checking directory connectivity
Pass 4: Checking reference counts
Pass 5: Checking group summary information
/dev/storage/vo: 11/73704 files (0.0% non-contiguous), 24683/299008 blocks
[root@localhost ~]# resize2fs /dev/storage/vo
resize2fs 1.46.5 (30-Dec-2021)
Resizing the filesystem on /dev/storage/vo to 6291456 (1k) blocks.
The filesystem on /dev/storage/vo is now 6291456 (1k) blocks long.
[root@localhost ~]# mount -a
[root@localhost ~]# lsblk
NAME MAJ:MIN RM SIZE RO TYPE MOUNTPOINTS
sr0 11:0 1 1.7G 0 rom
nvme0n1 259:0 0 20G 0 disk
├─nvme0n1p1 259:1 0 1G 0 part /boot
└─nvme0n1p2 259:2 0 19G 0 part
├─rl-root 253:0 0 17G 0 lvm /
└─rl-swap 253:1 0 2G 0 lvm [SWAP]
nvme0n2 259:3 0 5G 0 disk
└─storage-vo 253:2 0 6G 0 lvm /mnt/vo
nvme0n3 259:4 0 5G 0 disk
└─storage-vo 253:2 0 6G 0 lvm /mnt/vo
nvme0n4 259:5 0 5G 0 disk
nvme0n5 259:6 0 5G 0 disk
nvme0n6 259:7 0 5G 0 disk
[root@localhost ~]# df -h
Filesystem Size Used Avail Use% Mounted on
devtmpfs 4.0M 0 4.0M 0% /dev
tmpfs 872M 0 872M 0% /dev/shm
tmpfs 349M 5.2M 344M 2% /run
/dev/mapper/rl-root 17G 1.7G 16G 10% /
/dev/nvme0n1p1 960M 261M 700M 28% /boot
tmpfs 175M 0 175M 0% /run/user/0
/dev/mapper/storage-vo 5.7G 14K 5.4G 1% /mnt/vo
缩小逻辑卷
第1步：检查文件系统的完整性
[root@localhost ~]# umount /mnt/vo
[root@localhost ~]# e2fsck -f /dev/storage/vo
e2fsck 1.46.5 (30-Dec-2021)
Pass 1: Checking inodes, blocks, and sizes
Pass 2: Checking directory structure
Pass 3: Checking directory connectivity
Pass 4: Checking reference counts
Pass 5: Checking group summary information
/dev/storage/vo: 11/1529856 files (0.0% non-contiguous), 391996/6291456 blocks
第2步：把逻辑卷vo的容量减小到120MB
[root@localhost ~]# resize2fs /dev/storage/vo 120M
resize2fs 1.46.5 (30-Dec-2021)
Resizing the filesystem on /dev/storage/vo to 122880 (1k) blocks.
The filesystem on /dev/storage/vo is now 122880 (1k) blocks long.
[root@localhost ~]# lvreduce -L 120M /dev/storage/vo
File system ext4 found on storage/vo.
File system size (120.00 MiB) is equal to the requested size (120.00 MiB).
File system reduce is not needed, skipping.
Size of logical volume storage/vo changed from 6.00 GiB (1536 extents) to 120.00 MiB (30 extents).
Logical volume storage/vo successfully resized.
第3步：重新挂载文件系统并查看系统状态
[root@localhost ~]# mount -a
[root@localhost ~]# df -h
Filesystem Size Used Avail Use% Mounted on
devtmpfs 4.0M 0 4.0M 0% /dev
tmpfs 872M 0 872M 0% /dev/shm
tmpfs 349M 5.2M 344M 2% /run
/dev/mapper/rl-root 17G 1.7G 16G 10% /
/dev/nvme0n1p1 960M 261M 700M 28% /boot
tmpfs 175M 0 175M 0% /run/user/0
/dev/mapper/storage-vo 108M 14K 99M 1% /mnt/vo
逻辑卷快照
LVM还具备有“快照卷”功能，该功能类似于虚拟机软件的还原时间点功能。例如，可以对某一个逻辑卷设备做一次快照，如果日后发现数据被改错了，就可以利用之前做好的快照卷进行覆盖还原。LVM的快照卷功能有两个特点：
- 快照卷的容量必须等同于逻辑卷的容量；
- 快照卷仅一次有效，一旦执行还原操作后则会被立即自动删除。
[root@localhost ~]# vgdisplay
--- Volume group ---
VG Name storage
System ID
Format lvm2
Metadata Areas 2
Metadata Sequence No 5
VG Access read/write
VG Status resizable
MAX LV 0
Cur LV 1
Open LV 1
Max PV 0
Cur PV 2
Act PV 2
VG Size 9.99 GiB
PE Size 4.00 MiB
Total PE 2558
Alloc PE / Size 30 / 120.00 MiB
Free PE / Size 2528 / <9.88 GiB # 容量剩余9.88G
VG UUID fhR9kn-q5mT-CxO1-Skst-c5mN-X1nN-TbQpU6
--- Volume group ---
VG Name rl
System ID
Format lvm2
Metadata Areas 1
Metadata Sequence No 3
VG Access read/write
VG Status resizable
MAX LV 0
Cur LV 2
Open LV 2
Max PV 0
Cur PV 1
Act PV 1
VG Size <19.00 GiB
PE Size 4.00 MiB
Total PE 4863
Alloc PE / Size 4863 / <19.00 GiB
Free PE / Size 0 / 0
VG UUID GbAoZ2-IvHg-YKLQ-366L-f2lq-qo71-T79Hm6
接下来用重定向往逻辑卷设备所挂载的目录中写入一个文件
[root@localhost ~]# echo "hello world" > /mnt/vo/readme.txt
[root@localhost ~]# ls -l /mnt/vo
total 14
drwx------. 2 root root 12288 Apr 18 13:38 lost+found
-rw-r--r--. 1 root root 12 Apr 18 13:48 readme.txt
第1步：使用-s参数生成一个快照卷，使用-L参数指定切割的大小。
另外，还需要在命令后面写上是针对哪个逻辑卷执行的快照操作。强烈建议快照大小和原来的LVM一样大
[root@localhost ~]# lvcreate -L 120M -s -n SNAP /dev/storage/vo
#强烈建议快照大小和原来的LVM一样大，虽然指定大小是120M，并不是创建一个120M大小的快照，除非修改、新增的文件超出120M才会出事情，删除不影响。
Logical volume "SNAP" created.
[root@localhost ~]# lvdisplay
--- Logical volume ---
LV Path /dev/storage/vo
LV Name vo
VG Name storage
LV UUID X83QDm-cgYS-Vlsj-FHqq-pJWh-bWnY-NhoozO
LV Write Access read/write
LV Creation host, time localhost.localdomain, 2024-11-16 17:35:36 +0800
LV snapshot status source of
SNAP [active]
LV Status available
# open 1
LV Size 120.00 MiB
Current LE 30
Segments 1
Allocation inherit
Read ahead sectors auto
- currently set to 8192
Block device 253:2
--- Logical volume ---
LV Path /dev/storage/SNAP
LV Name SNAP
VG Name storage
LV UUID om37W1-JVXY-yctX-4Rm7-Bh9L-ERVo-JlqTuV
LV Write Access read/write
LV Creation host, time localhost.localdomain, 2024-11-16 17:43:02 +0800
LV snapshot status active destination for vo
LV Status available
# open 0
LV Size 120.00 MiB
Current LE 30
COW-table size 120.00 MiB
COW-table LE 30
Allocated to snapshot 0.01%
Snapshot chunk size 4.00 KiB
Segments 1
Allocation inherit
Read ahead sectors auto
- currently set to 8192
Block device 253:5
--- Logical volume ---
LV Path /dev/rl/swap
LV Name swap
VG Name rl
LV UUID mStLV7-xYcw-4GHG-vdEC-igob-LNmI-xWVQRF
LV Write Access read/write
LV Creation host, time localhost.localdomain, 2024-11-09 10:51:12 +0800
LV Status available
# open 2
LV Size 2.00 GiB
Current LE 512
Segments 1
Allocation inherit
Read ahead sectors auto
- currently set to 8192
Block device 253:1
--- Logical volume ---
LV Path /dev/rl/root
LV Name root
VG Name rl
LV UUID yQ6wgx-mgEh-ACiF-Au17-X7Qs-PzQx-0eiqg3
LV Write Access read/write
LV Creation host, time localhost.localdomain, 2024-11-09 10:51:12 +0800
LV Status available
# open 1
LV Size <17.00 GiB
Current LE 4351
Segments 1
Allocation inherit
Read ahead sectors auto
- currently set to 8192
Block device 253:0
第2步：在逻辑卷所挂载的目录中创建一个50MB的垃圾文件，然后再查看快照卷的状态。可以发现存储空间占的用量上升了
[root@localhost ~]# dd if=/dev/zero of=/mnt/vo/files count=1 bs=50M
1+0 records in
1+0 records out
104857600 bytes (105 MB) copied, 3.29409 s, 31.8 MB/s
[root@localhost ~]# lvdisplay
--- Logical volume ---
LV Path /dev/storage/vo
LV Name vo
VG Name storage
LV UUID X83QDm-cgYS-Vlsj-FHqq-pJWh-bWnY-NhoozO
LV Write Access read/write
LV Creation host, time localhost.localdomain, 2024-11-16 17:35:36 +0800
LV snapshot status source of
SNAP [active]
LV Status available
# open 1
LV Size 120.00 MiB
Current LE 30
Segments 1
Allocation inherit
Read ahead sectors auto
- currently set to 8192
Block device 253:2
--- Logical volume ---
LV Path /dev/storage/SNAP
LV Name SNAP
VG Name storage
LV UUID om37W1-JVXY-yctX-4Rm7-Bh9L-ERVo-JlqTuV
LV Write Access read/write
LV Creation host, time localhost.localdomain, 2024-11-16 17:43:02 +0800
LV snapshot status active destination for vo
LV Status available
# open 0
LV Size 120.00 MiB
Current LE 30
COW-table size 120.00 MiB
COW-table LE 30
Allocated to snapshot 41.90% # 从0.01变成了41.90
Snapshot chunk size 4.00 KiB
Segments 1
Allocation inherit
Read ahead sectors auto
- currently set to 8192
Block device 253:5
--- Logical volume ---
LV Path /dev/rl/swap
LV Name swap
VG Name rl
LV UUID mStLV7-xYcw-4GHG-vdEC-igob-LNmI-xWVQRF
LV Write Access read/write
LV Creation host, time localhost.localdomain, 2024-11-09 10:51:12 +0800
LV Status available
# open 2
LV Size 2.00 GiB
Current LE 512
Segments 1
Allocation inherit
Read ahead sectors auto
- currently set to 8192
Block device 253:1
--- Logical volume ---
LV Path /dev/rl/root
LV Name root
VG Name rl
LV UUID yQ6wgx-mgEh-ACiF-Au17-X7Qs-PzQx-0eiqg3
LV Write Access read/write
LV Creation host, time localhost.localdomain, 2024-11-09 10:51:12 +0800
LV Status available
# open 1
LV Size <17.00 GiB
Current LE 4351
Segments 1
Allocation inherit
Read ahead sectors auto
- currently set to 8192
Block device 253:0
第3步：为了校验SNAP快照卷的效果，需要对逻辑卷进行快照还原操作。在此之前记得先卸载掉逻辑卷设备与目录的挂载。
[root@localhost ~]# umount /mnt/vo
[root@localhost ~]# lvconvert --merge /dev/storage/SNAP
Merging of volume storage/SNAP started.
storage/vo: Merged: 31.39%
storage/vo: Merged: 100.00%
第4步：快照卷会被自动删除掉，并且刚刚在逻辑卷设备被执行快照操作后再创建出来的50MB的垃圾文件也被清除了
[root@localhost ~]# mount -a
[root@localhost ~]# ls /mnt/vo/
lost+found readme.txt
删除逻辑卷
第1步：取消逻辑卷与目录的挂载关联，删除配置文件中永久生效的设备参数。
[root@localhost ~]# umount /mnt/vo/
[root@localhost ~]# vi /etc/fstab
#
# /etc/fstab
# Created by anaconda on Mon Apr 15 17:31:00 2019
#
# Accessible filesystems, by reference, are maintained under '/dev/disk'
# See man pages fstab(5), findfs(8), mount(8) and/or blkid(8) for more info
#
/dev/mapper/centos-root / xfs defaults 0 0
UUID=63e91158-e754-41c3-b35d-7b9698e71355 /boot xfs defaults 0 0
/dev/mapper/centos-swap swap swap defaults 0 0
第2步：删除逻辑卷设备，需要输入y来确认操作
[root@localhost ~]# lvremove /dev/storage/vo
Do you really want to remove active logical volume storage/vo? [y/n]: y
Logical volume "vo" successfully removed
第3步：删除卷组，此处只写卷组名称即可，不需要设备的绝对路径。
[root@localhost ~]# vgremove storage
Volume group "storage" successfully removed
第4步：删除物理卷设备
[root@localhost ~]# pvremove /dev/nvme0n2 /dev/nvme0n3
Labels on physical volume "/dev/nvme0n2" successfully wiped.
Labels on physical volume "/dev/nvme0n3" successfully wiped.
